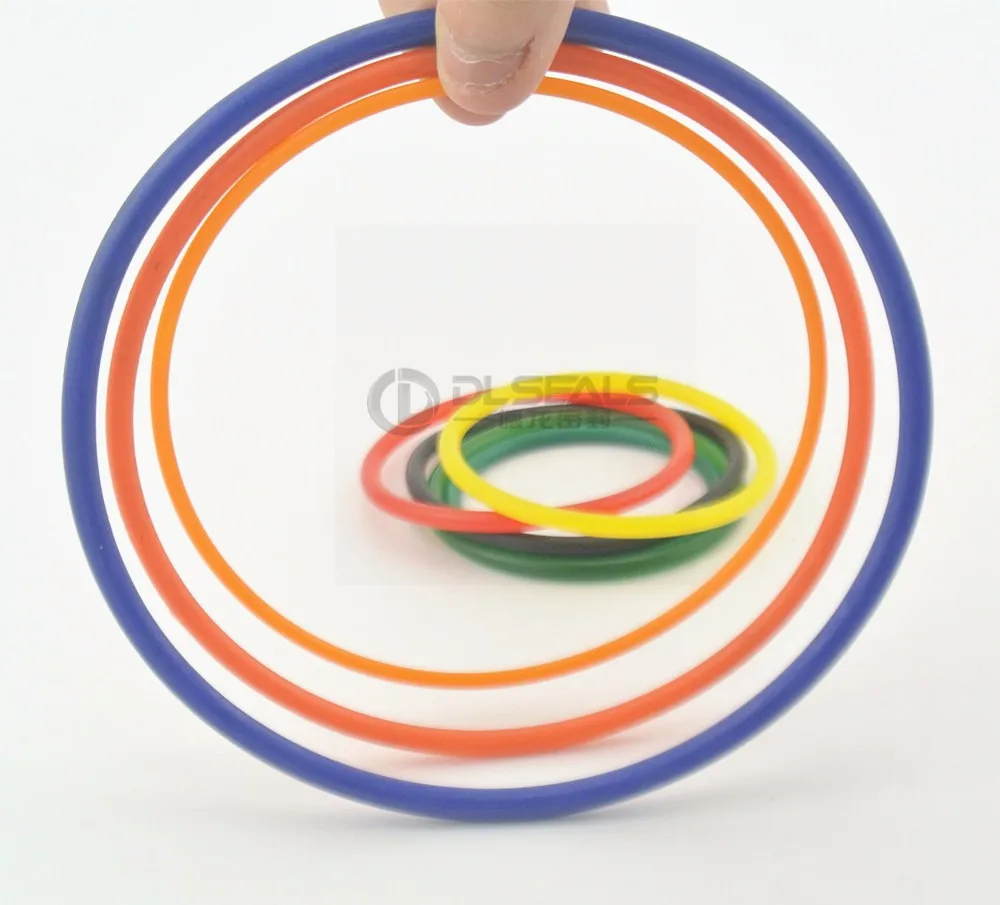

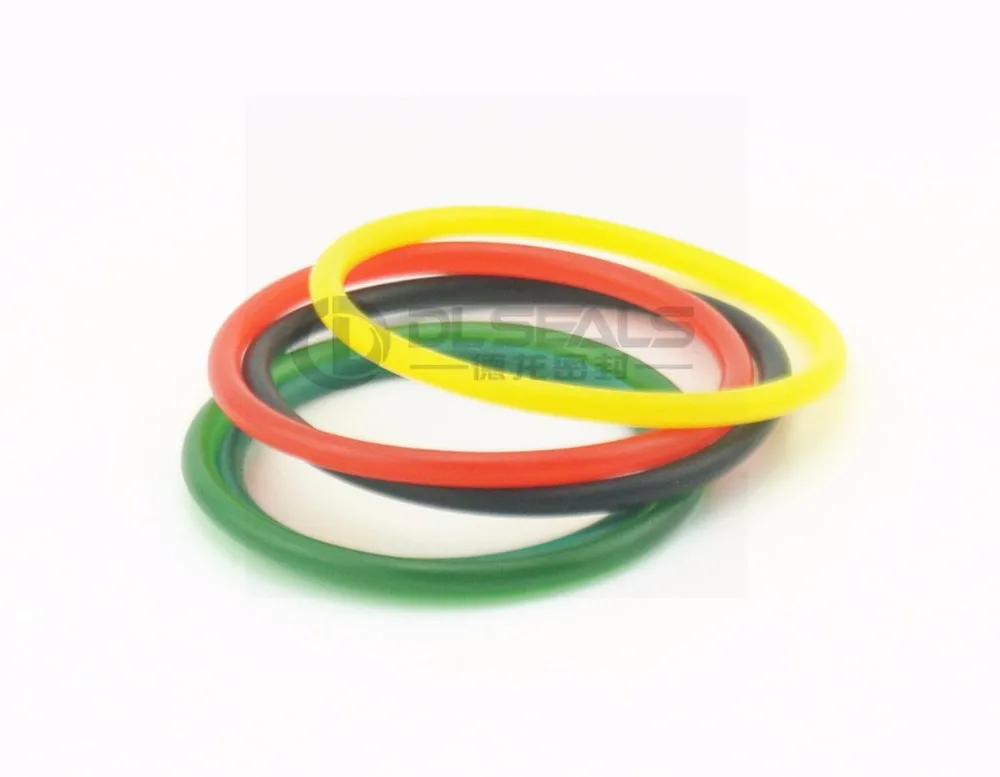

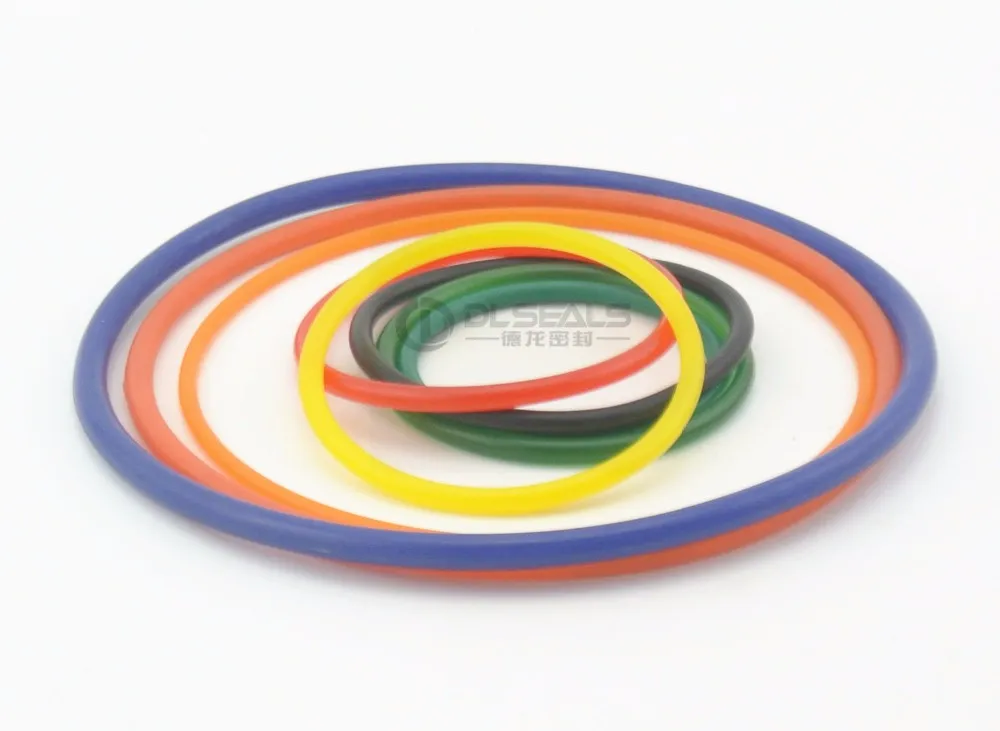

Silicone colored o ring neon color seal ring rubber o ring
30A to 90A
-60 to +230 ℃
black, red, green , yellow
ID 1mm to 1200mm
Excellent heat resistance, small compression permenent deformation etc
Seal food machinery and enquirpment ,super speed rotary applicantions.
5000000 Piece/Pieces per Month silicone o-ring has strong supply capacity
Packaging & Delivery
Shipped in 15 days after payment
1. Rubber O-Ring is a loop of elastomer with a round cross-section. 2. Rubber O-Ring is designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface. 3. Rubber O-Ring can be used both in static applications and in dynamic applications.Such as rotating pump shaftsand hydraulic cylinder pistons. 4. Rubber O-Ring is inexpensive, easy to make, reliable and simple mounting requirements, O ring is most common seals in machine design.
NBR(nitrile butadiene rubber)
*Service Temperature For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and formula.
*Application NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low temperatures.
*Service Temperature For general type Viton the service temperature is better limited to approximately from -26 C to 232 C in static applications, though the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15 C and 200 C.
*Application Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in automotive, chemical processing, aerospace and many other industries.
Silicone Rubber (Q, MQ, VMQ, PVMQ)
*Service Temperature For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme temperature up to 300 C and down to -100 C.
*Application Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that need FDA approval for food handling equipment and appliances.
-45 to 120 °C
PU displays higher mechanical strength, high abrasion, wear and extrusion resistance, high pressure load capacity, as well as a high tear and elongation at break resistance.
PU is suitablefor for application in mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic fluids HFA and HFB and water uo to 50℃.
PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide temperature range of -100°F to +400°F (-73°C to 204°C).
PTFE is the common sealing material used for making wear ring, backing-up ring, o ring, gasket, etc. It can be found in metallurgy machinery, petrochemical machinery, engineering machinery, and light industrial machinery.
Ethylene Propylene Rubber (EPM, EPDM)
*Service Temperature For EPDM the service temperature can be designed from -55 C to 125 C or up to 150 C (for peroxide cured systems). *Application In phosphate-ester based hydraulic fluids and glycol based brake fluids systems Ethylene Propylene Rubber is good choice for sealing parts. EPDM is also is usually used in hot water or steam applications up to 150 C.
Packing & Delivery
Colored Rubber Silicone O-Ring
Packaging Details: Plastic bag for inner packing of FDA colored rubber silicone o-ring Carton box for outer packing of FDA colored rubber silicone o-ring
FDA colored rubber silicone o-ring also be packed according to customer's requirements. Delivery Detail: Within 15 days after receiving remittance
FDA colored rubber silicone o-ring.
AS568 rubber viton o rings
NBR oill resistance rubber o rings
